The World Beneath Your Feet
Drill the deepest hole humans have ever made and you reach 12 kilometers down. That is less than 0.2% of the way to the center of Earth. Everything beyond that has been mapped without anyone going there. We know the interior is layered, that the outer half is molten and the innermost ball is solid, that one of those liquid layers churns hard enough to generate the magnetic field protecting the surface from space radiation. We know it because waves and gravity tell us, and because tiny patches of magnetism frozen into ancient rock have testified about field reversals reaching back billions of years. Geophysics is what happens when you treat an entire planet as an experimental apparatus and read the receipts.

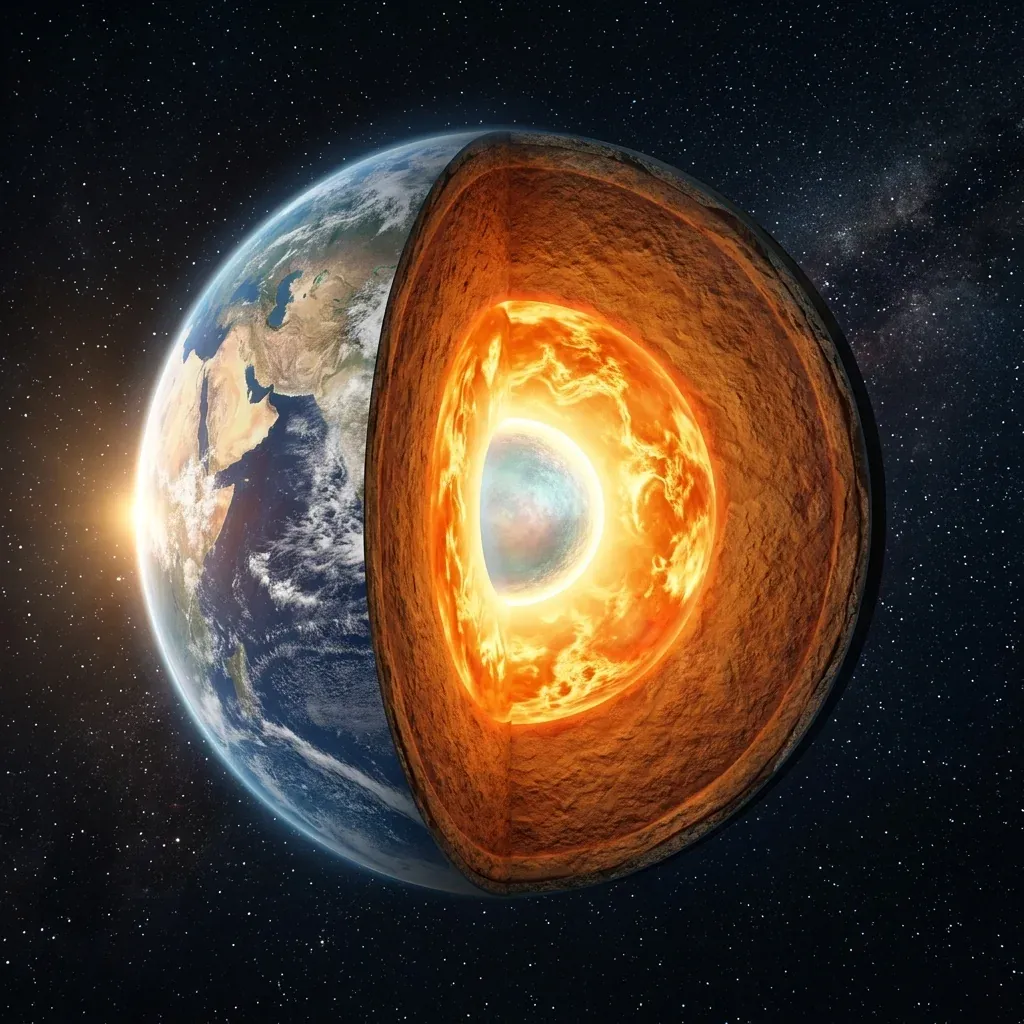

Earth is engineered in four nested shells. Crust at the top, a thin rocky skin five to ten kilometers thick under oceans and as much as ninety kilometers under continents. Below that, mantle: solid silicate rock that flows like very stiff putty on geological timescales, reaching from the base of the crust down to 2,890 kilometers. Then the outer core, a sea of liquid iron and nickel about the volume of Mars, hot enough that everything else interesting on this page happens because of it. And finally the inner core, solid iron-nickel with a sprinkle of lighter elements, with a surface temperature near 5,700 K. That is essentially the temperature of the Sun’s surface, contained inside a ball you could fly across in a few hours if you could survive doing it.
Recent seismic work has refined this picture. In 2023, Phạm and Tkalčić used seismic waves that bounce up to five times inside the inner core to confirm an “innermost inner core” about 650 km in radius, with its iron crystals aligned along a different axis than the surrounding inner core. A 2025 follow-up describes the whole core as more onion-like than originally imagined. The deeper we listen, the more structure we find.
How We Know

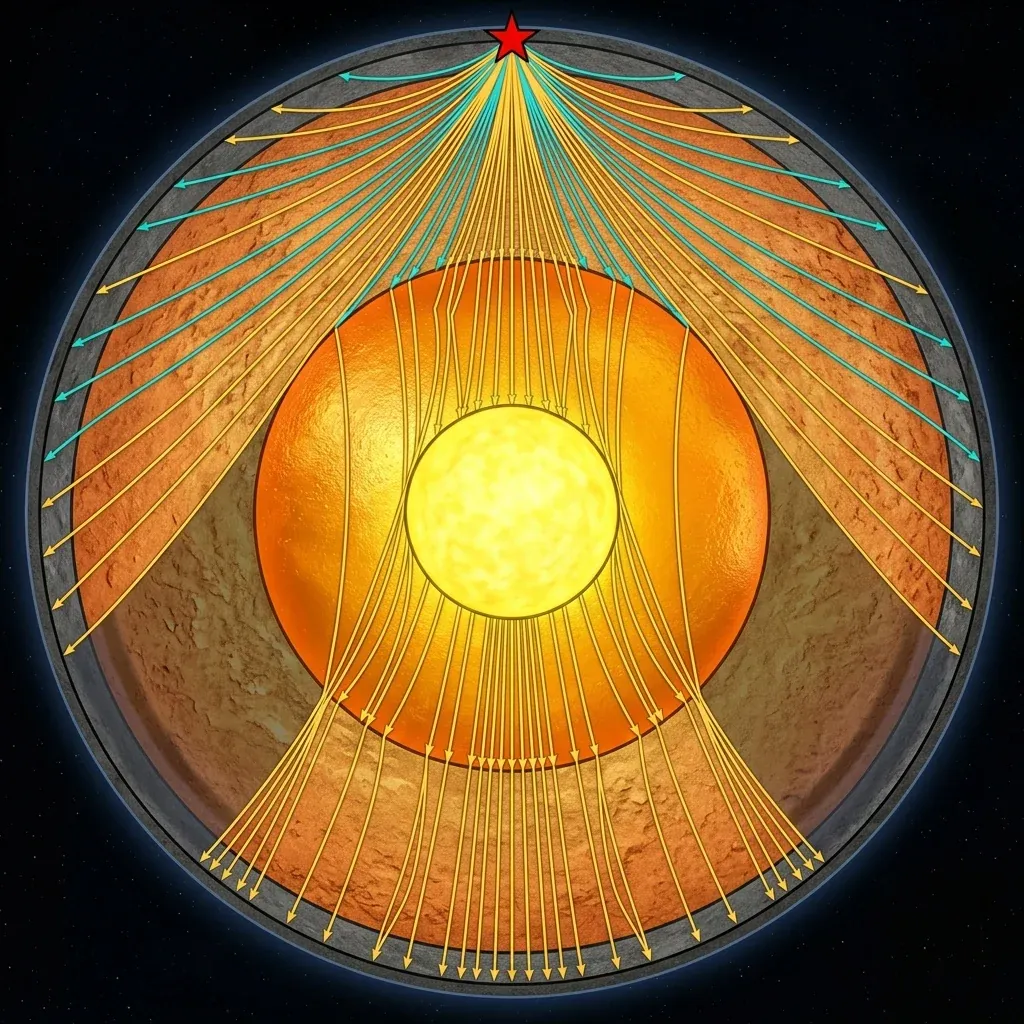

Earthquakes are not just hazards. They are floodlights. Every large quake illuminates the interior, sending out waves that reach seismometers on every continent. By the early twentieth century, two families of waves had been identified. P-waves are compressional, pushing and pulling along their direction of travel like sound waves in a metal bar. They pass through anything that has any rigidity at all, solid or liquid. S-waves are shear, oscillating perpendicular to their direction of travel like a wave on a rope. Shear has a famous limitation: liquids do not push back when you try to shear them, because a liquid offers no resistance to a sliding deformation. So S-waves are stopped dead by anything genuinely fluid.
That asymmetry is how we know the outer core is liquid. Beyond about 104 degrees of arc from any large earthquake, S-waves simply vanish from the seismograms. Something between the epicenter and the antipodes is swallowing them. P-waves also have a shadow zone, between roughly 104 and 140 degrees, where they are refracted by the slower outer core and skirt past the receiver. These shadow zones were charted by Oldham in 1906 and Gutenberg in 1913, and the only interior structure consistent with the observation is a liquid sphere at the heart of the planet.
In 1936 a Danish seismologist named Inge Lehmann was studying records of a large quake near New Zealand when she noticed faint P-wave arrivals exactly inside the supposed shadow zone. The traces were small but unmistakable. She concluded that there must be a solid sphere inside the liquid outer core, sharp enough at its boundary to reflect P-waves the way a mirror reflects light. Her 1936 paper has perhaps the most efficient title in the history of geophysics. It is called “P′”. That inner-core boundary is still where we draw the line between liquid outer core and solid inner core, at about 5,150 kilometers depth.
The Geodynamo
Compass needles point north because Earth itself is a giant dipole magnet. The field strength at the surface is modest, between 25 and 65 microtesla depending on where you stand, which is about a hundredth of the field next to a refrigerator magnet. But it is sustained, on average, for the entire history of the planet, and that requires a mechanism. A simple bar magnet would not work, because iron loses its permanent magnetism above about 1,040 K and everything in Earth’s interior is far hotter than that. The magnet has to be regenerated continuously, and the source has to live somewhere that is hot, electrically conducting, and free to move.

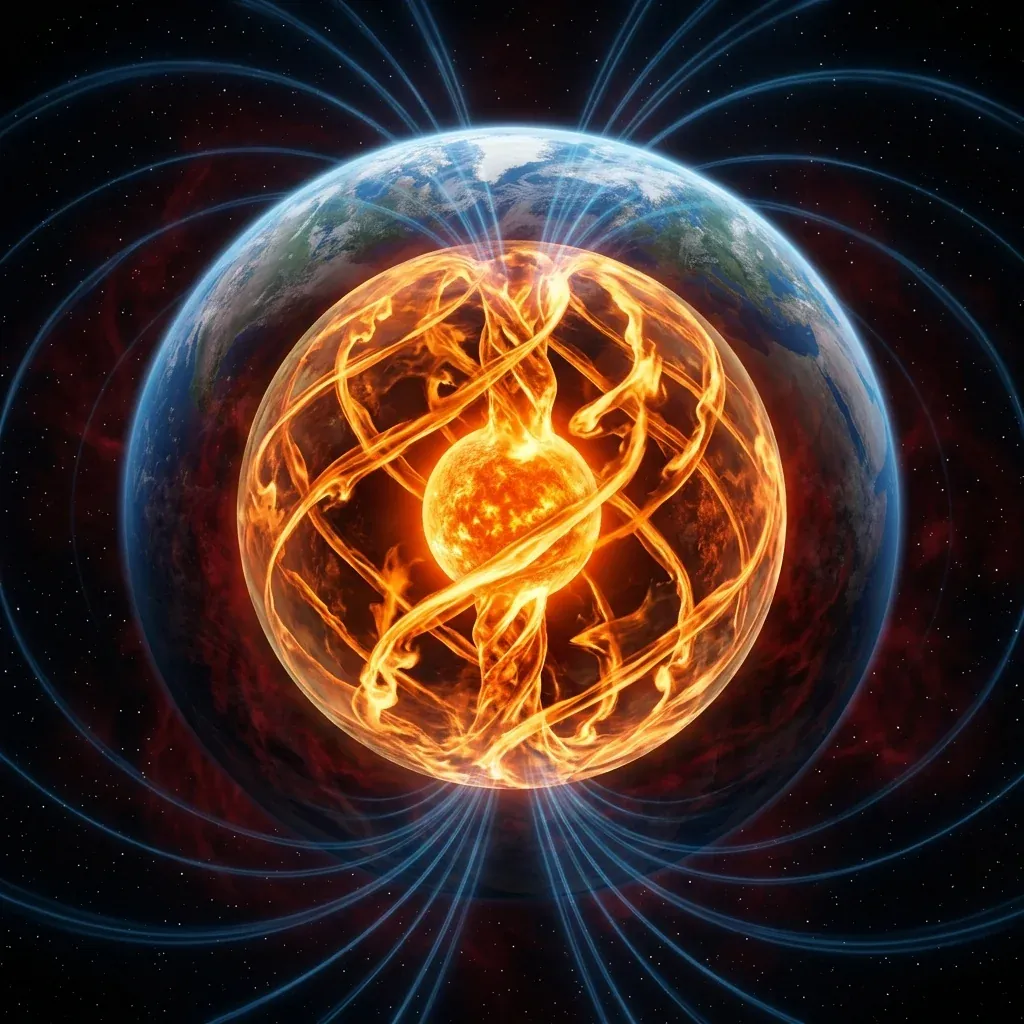

The outer core fits the description perfectly. It is liquid iron, about 2,000 kilometers thick, hot enough to flow easily and conductive enough that moving it carries currents. Add Earth’s rotation and the buoyancy of cooler material sinking past hotter material, and you get organized convection in tall columns aligned with the rotation axis. Those columns drag magnetic field lines along with them. A small seed field gets amplified by the motion. The amplified field reorganizes the flow. The flow re-amplifies the field. After about a billion years of running this loop, you have the present-day magnetosphere. This is called the geodynamo, and getting it to run consistently in a computer simulation is one of the hardest problems in classical physics.
The dynamo is not steady. Even now, the field is weakening at about 5% per century globally, and roughly 10% per decade over a region called the South Atlantic Anomaly, where it has dropped to about 22 microtesla. Satellites pass through the Anomaly and the Hubble Space Telescope pauses science observations there because the local field is too weak to deflect cosmic radiation efficiently. ESA’s Swarm constellation, three satellites launched in 2013 to map the field continuously, has shown that the Anomaly grew in area by nearly half the size of continental Europe between 2014 and 2025. None of this means the field is about to fail. It just means the geodynamo is unsteady in ways we are only now starting to track in real time.
Reversals
Every so often the geodynamo loses confidence in its own polarity and the magnetic field flips. North and south swap places, slowly, over a period of a few thousand years. While the field is in transit, the dipole component drops to a fraction of its current strength and the surface gets a stronger dose of cosmic ray flux. The last full reversal happened about 780,000 years ago and is called the Brunhes-Matuyama event. The average interval between reversals over the past few million years has been around 250,000 years. It is tempting to call us "overdue," but reversals are not scheduled events. They arrive at random, much like radioactive decay, with no memory of how long it has been since the last one – and a process like that is never actually due. The long gap since the Brunhes-Matuyama flip predicts nothing about when the next reversal comes.
We know the dates of every recent reversal because basalt erupting at mid-ocean ridges records the field direction of the moment it cools through the Curie temperature, and freezes it in. Drag a magnetometer over the sea floor on either side of a ridge and you find a tidy zebra pattern: stripes of normal polarity, stripes of reversed polarity, mirrored on the two sides of the rift. The pattern is what convinced geologists in the 1960s that the ocean floor was spreading. Sea-floor spreading is now the central evidence of plate tectonics, and the stripes are a continuous tape recording of the geodynamo going back 200 million years.
Smaller events called excursions, where the field weakens dramatically and wanders without committing to a full flip, happen more often. The Laschamp excursion 41,000 years ago dropped the dipole to less than 10% of its present strength for about 800 years before recovering. Some researchers connect this episode to environmental stress on Neanderthals; others find the link weak. The data are real and the timing is striking, but as with most claims of this kind, the causation is debated.
Mantle Convection and the Continents
The mantle is solid rock, but on geological timescales it flows. The numbers are slow by human standards and breathtakingly fast by Earth’s. Mantle material creeps at roughly the rate your fingernails grow, a few centimeters per year. It carries Earth’s interior heat outward by lugging hot rock upward and letting cold rock sink. The total interior heat flow is about 47 terawatts – roughly two and a half times all the power human civilization uses – partly from radioactive decay of uranium, thorium, and potassium-40, and partly leftover heat from the formation of the planet 4.5 billion years ago.
The plates of plate tectonics are the cool upper boundary layer of this convection. They are dragged apart at mid-ocean ridges where hot material rises, pulled down into the deep mantle at subduction trenches, and shoved past one another along transform faults. Almost every earthquake and almost every volcano on the planet sits on a plate boundary. The famous Ring of Fire around the Pacific exists because subduction zones nearly encircle that ocean. About 90% of all earthquakes and 75% of active volcanoes are inside the Ring.

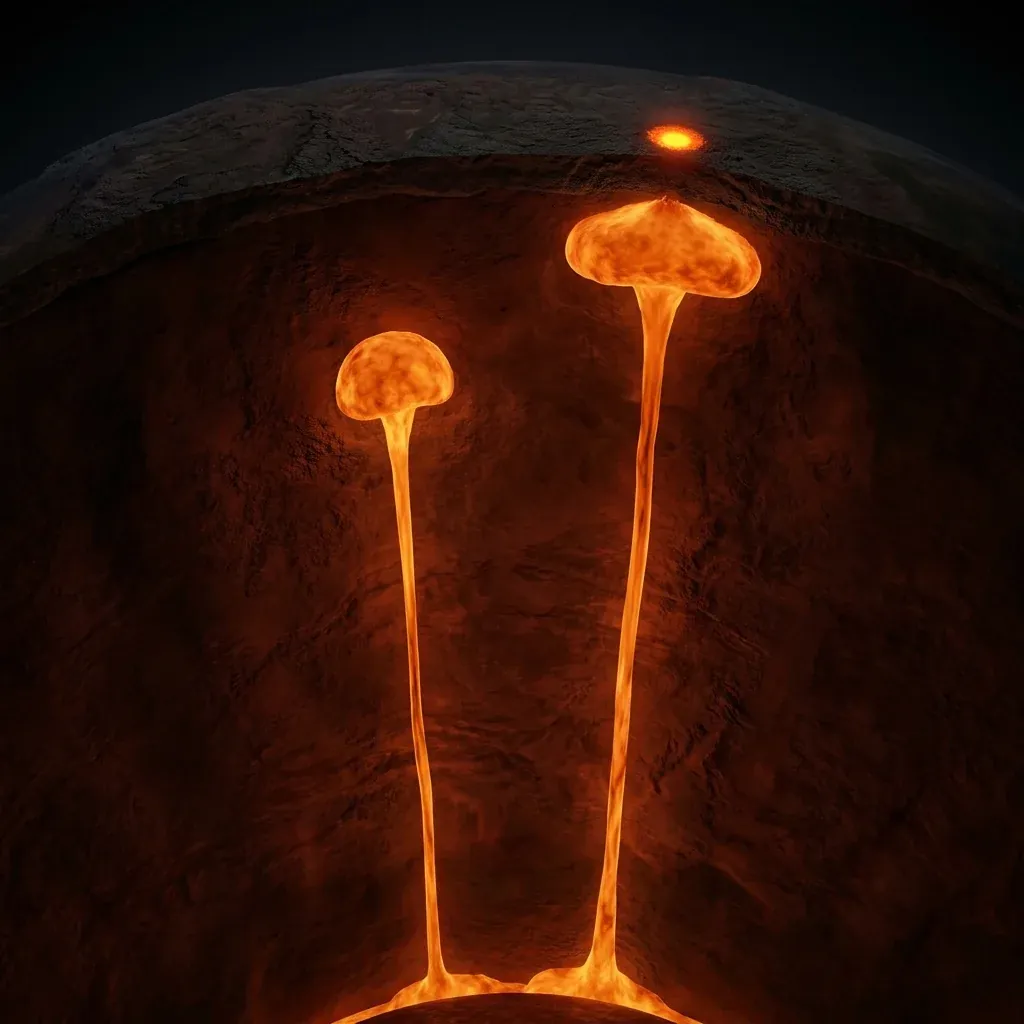

A second class of volcanoes does not fit this pattern. Hawaii sits in the middle of the Pacific plate, far from any boundary, and yet it has been erupting continuously somewhere along its island chain for tens of millions of years. The chain extends thousands of kilometers northwest because the Pacific plate is drifting over a relatively stationary hotspot fed by a deep narrow plume of unusually warm rock rising from the very base of the mantle. Yellowstone is another. So is Iceland and so are the Galápagos. These plumes are now imaged routinely with seismic tomography, and a 2024 reconstruction traced the Yellowstone plume tilting roughly 60 degrees westward all the way down to 660 kilometers.
At the very base of the mantle, against the boundary with the liquid core, sit two continent-sized blobs of unusual rock called Large Low Shear Velocity Provinces. One under Africa, one under the Pacific. Both are roughly the volume of an extra small continent and rise more than 1,000 kilometers off the core-mantle boundary into the lower mantle. Recent simulations suggest they form naturally over a billion years of subducted ocean crust piling up at the bottom, with the Pacific blob constantly refreshed by young material and the African one acting as a long-term graveyard. They almost certainly steer where plumes start.
The Inner Core Keeps Surprising Us
For decades the inner core was thought to be a quiet, slowly growing, slowly rotating ball of iron. That picture has fallen apart in the last few years. The first surprise was differential rotation. By comparing seismic records from repeating earthquakes that occurred years apart, geophysicists found that the inner core was spinning slightly faster than the rest of the planet for most of the late twentieth century. Then around 2009 it slowed, and by the early 2020s it was actually rotating slower than the mantle. A 2024 paper in Nature confirmed what the team called “backtracking”: the inner core has been sub-rotating since about 2010, for the first time in roughly four decades.
The second surprise, from the same group in 2025, is even stranger. The inner core does not just rotate. It deforms. Comparing 200 pairs of repeating earthquakes from 1991 to 2024, the team detected shape changes at the surface of the inner core itself – slow plastic deformations described in the press release as something like landslides happening 5,150 kilometers beneath your feet. The deformations are tiny, but they are real enough to alter the seismic signal in detectable ways, and they imply a more dynamic deep interior than the textbook static iron ball.
None of this is settled, and none of it changes the practical operation of the planet. But it is a reminder that the deepest layers of Earth are not finished revealing themselves. The signal sources are limited – you can only learn what the next earthquake bothers to tell you – and many of the most interesting modern results required pooling data from decades of monitoring across multiple national seismic networks. Every additional year of records improves the resolution of the very bottom of the planet.
The Magnetic Shield

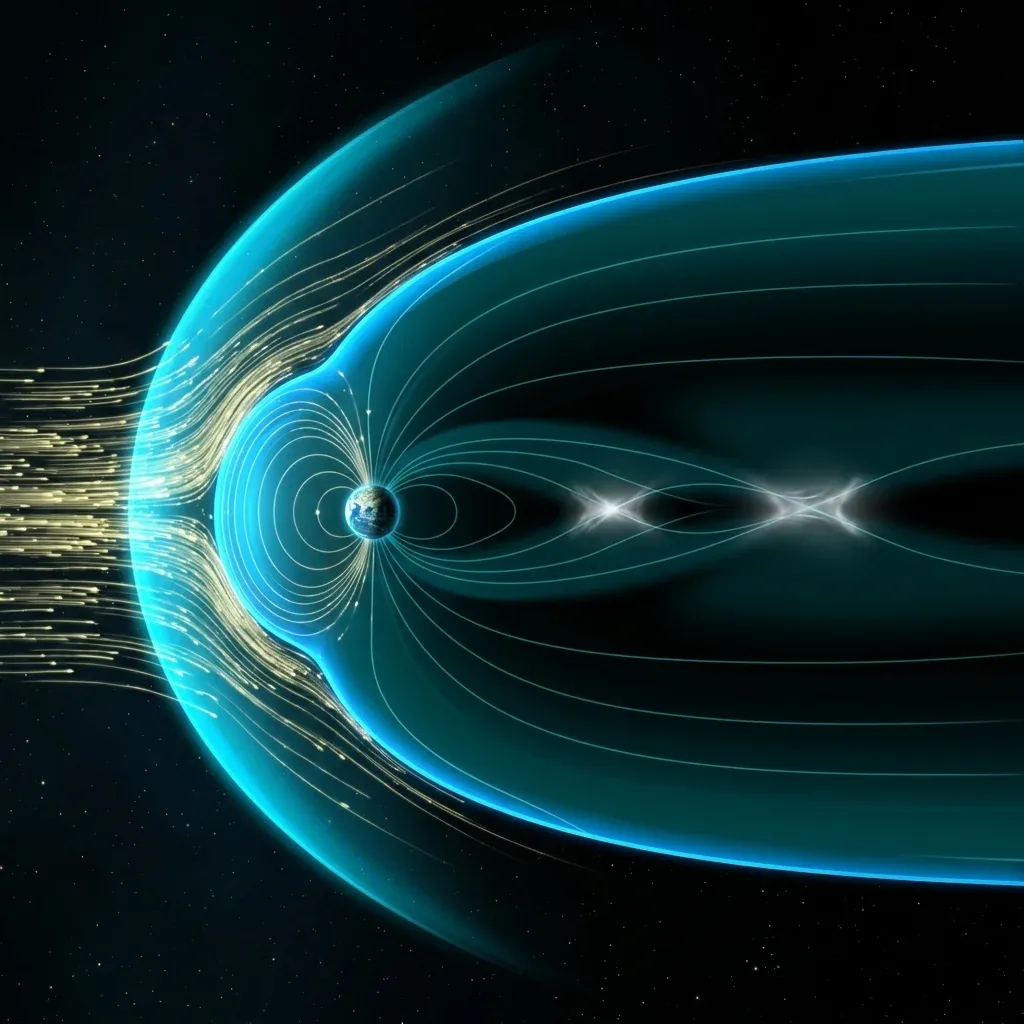

The field generated deep inside the planet does not stop at the surface. It extends outward into space, where it meets the solar wind – a constant stream of charged particles from the Sun blowing past Earth at four hundred to a thousand kilometers per second. The collision shapes a structure called the magnetosphere, the protective cocoon that deflects most incoming particles and channels the rest toward the poles.
On the sunward side, the solar wind compresses the field into a curved boundary called the magnetopause, standing off about 65,000 kilometers, or ten Earth radii, from the surface. On the antisunward side, the field stretches into a long magnetotail that runs past lunar orbit. Trapped between the inner field lines, two donut-shaped regions of energetic charged particles – the Van Allen belts – orbit Earth at 1,000 to 60,000 kilometers altitude. The inner belt is full of protons, the outer one is dominated by electrons and varies dramatically with solar activity.
When a coronal mass ejection from the Sun slams into the magnetosphere, the magnetic field on the night side gets squeezed, snaps, and releases bursts of energetic particles that funnel down field lines into the upper atmosphere over the polar regions. The particles excite atomic oxygen and molecular nitrogen at 100 to 300 kilometers altitude. Excited atomic oxygen relaxes by emitting a specific green photon at 557.7 nanometers. That is the green aurora, the color most people see when they go north or south far enough to look up.
In May 2024 a sunspot region 17 times the diameter of Earth fired off eight Earth-directed coronal mass ejections in three days. The result was a G5 geomagnetic storm, the strongest in 20 years and possibly the most spectacular auroral display since the famous Carrington event of 1859. Auroras were visible from Mexico, from Florida, from Spain, from Italy. Practical impacts: GPS errors reached 70 meters across the central United States, and the resulting failure of precision agriculture auto-steer cost American farmers an estimated $500 million during planting season. Solar Cycle 25 peaked in late 2024 and the field is still settling. The magnetosphere absorbed essentially all of the impact – the same shielding that, over billions of years, has helped Earth hold on to its atmosphere.
The Slow Future
Plate tectonics is a one-way conveyor. Oceans open and close on cycles of three to five hundred million years, called Wilson cycles. The Atlantic is currently widening at about 2.5 centimeters per year while the Pacific shrinks. Project the motion forward and the continents reassemble into a new supercontinent in roughly 250 million years. Several names have been proposed depending on which models you trust. Pangaea Proxima clusters everything around the present North Atlantic. Amasia gathers the continents at the North Pole. Aurica drifts everything equatorward. The trajectories diverge because mantle convection is a deterministic chaotic flow, and small differences in current state amplify over hundreds of millions of years.
On a much shorter timescale, the geodynamo will keep doing what it has been doing, with occasional reversals and excursions. The Sun will keep blowing solar wind at the magnetosphere. The mantle will keep dragging plates around in slow loops. The inner core will keep growing as the outer core slowly freezes onto its surface, with the latent heat released by that freezing helping to drive the convection that sustains the field. Whether the inner core is still growing fast enough to keep the dynamo running another billion years is a live research question, with cooling-rate estimates varying by factors of two depending on which thermal conductivity number you trust for liquid iron at 5,000 K. The honest answer is: probably long enough.
What is settled is that the planet beneath your feet is not finished. It is a machine running on heat that has been escaping for four and a half billion years, with the upper plates as the visible interface and a hidden geodynamo as the power supply. Every earthquake, every volcano, every compass deflection, every aurora is a glimpse of that machine at work. Geophysics is the language for reading those glimpses.
