Metamaterials
Properties Engineered Into Geometry
A Different Way to Build Materials
Look at any natural substance and its properties come from its chemistry. Glass refracts light by a particular amount because the electron clouds of silicon and oxygen respond a particular way to oscillating electric fields. Copper conducts because half its electrons are free to roam. Diamond is hard because of how its tetrahedral carbon bonds resist deformation. Every material in the periodic table has been working with the same toolbox for billions of years, and most of the optical and acoustic properties available to engineering have been mined from that toolbox by chemists.
A metamaterial is a different idea. Instead of choosing an exotic chemistry, you take an ordinary substance and pattern it on a length scale smaller than the wavelength of the wave you want to control. For visible light that pattern has to be at the nanometer scale; for microwaves a few millimeters; for sound a few centimeters. The wave cannot resolve the individual patterns and averages over them. What it feels is an effective medium whose response is set by the geometry you chose, not by the chemistry of the base material. Once you take that step, the rule book opens up. You can engineer effective material properties that do not exist in any natural substance, including values that are negative, near zero, or wildly anisotropic.
The building block is called a meta-atom and the analogy with a real atom is more than cosmetic. A natural atom responds to light because its electrons can be polarized. A meta-atom is a circuit or a small dielectric resonator whose geometry forces a specific resonant response at a specific frequency. Stack billions of identical meta-atoms in a regular array and the wave interacting with them sees a uniform medium with the response baked in. Change the geometry of each meta-atom and the medium changes.
Light That Bends the Wrong Way
Shine a laser pointer into water and the beam bends toward the normal – the imaginary line perpendicular to the surface. Every transparent substance you encounter has a refractive index greater than one, and they all bend light in the same direction. In 1968 a Soviet theoretical physicist named Victor Veselago worked out what would happen if a material had simultaneously negative electric permittivity and negative magnetic permeability. The math said the refractive index would be negative, and that light entering such a substance would bend the wrong way – toward the same side of the normal as the incoming ray. Veselago could not point to any material that fit the description. The paper sat largely unread for thirty years.

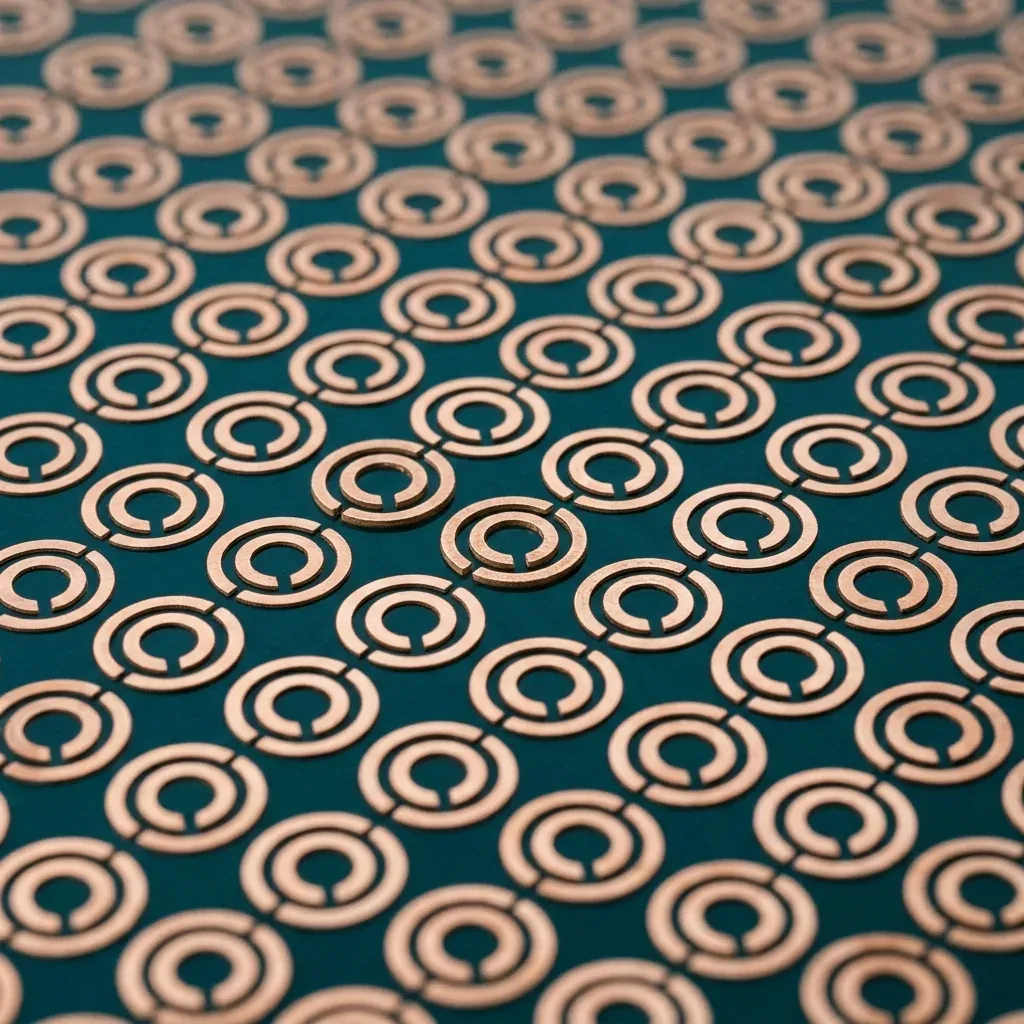

In 1999, John Pendry showed theoretically how a periodic array of metallic wires could give an effective negative permittivity, while a separate array of split-ring resonators could give negative permeability, both in the microwave range. In 2000, David Smith and Sheldon Schultz at UCSD combined the two structures into the first composite with effective negative index. In 2001 the team published the smoking-gun measurement: a microwave beam crossing a wedge of their metamaterial bent the wrong way, with effective index near minus one. Veselago’s 1968 prediction was experimentally confirmed by a stamped circuit board.

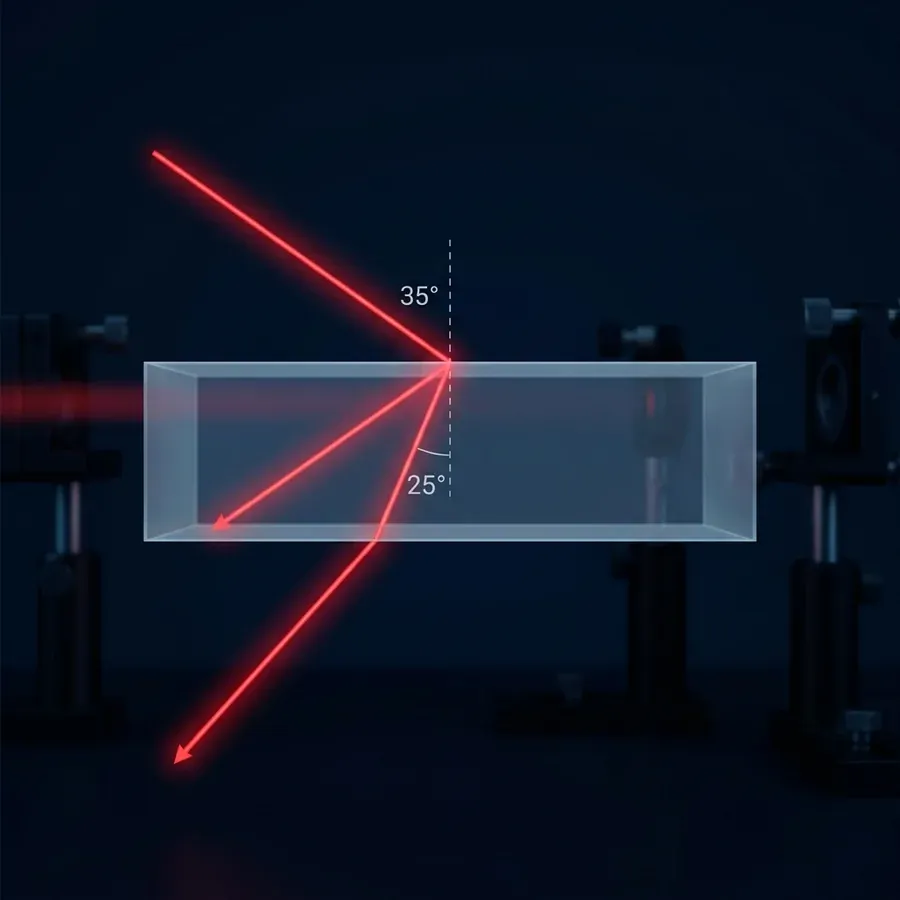

The standard textbook intuition has to be partially abandoned. In a negative-index material the phase velocity of light points opposite to the direction the energy actually flows. The wave still carries energy forward, but the peaks and troughs march backward against the flow. That backward phase progression is what bends the beam the wrong way. Refractive indices for comparison: vacuum is 1.0, water is 1.33, ordinary glass is 1.5, silicon is 3.5, diamond is 2.42, and engineered photonic crystals can reach above 5. Metamaterials reach below 0.
Invisibility, Honestly
Maxwell’s equations, which govern all electromagnetic propagation, are form-invariant under coordinate transformations. If you stretch the coordinate grid of space, you can compensate by building a material whose permittivity and permeability change in exactly the right way, and the math is identical. John Pendry, David Schurig, and David Smith built an entire engineering framework around this fact in 2006. They called it transformation optics. If you imagine deforming the coordinate grid so that a hole opens up around some hidden region, then build a material whose properties enact that deformation, light flowing through the material steers smoothly around the hidden region and re-emerges on the far side as if nothing was there.

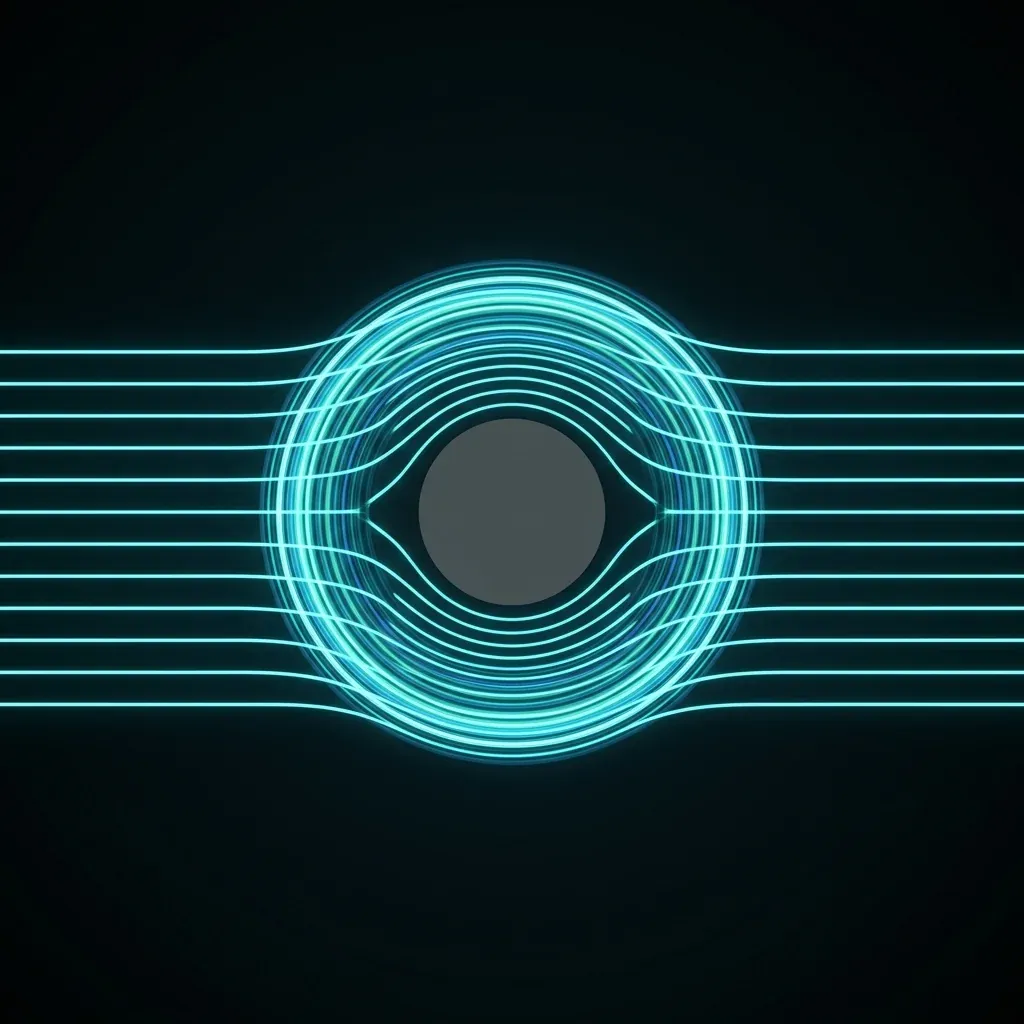

The Duke University group demonstrated the first cloak in October 2006. It was a two-dimensional cylinder of split-ring resonators arrayed in ten concentric rings. A copper cylinder placed inside the shell became significantly less visible to a microwave beam at 8.5 GHz. The reduction in scattering was real and reproducible. The cloak also worked over only a fraction of a percent of bandwidth, only for one polarization, only at one frequency, and the rings themselves absorbed a significant fraction of the energy passing through them.
Nearly two decades later, those constraints have softened but not vanished. Cloaks have been demonstrated at terahertz frequencies, in three dimensions, for sound, and for surface acoustic waves on the ground. Skin cloaks – thin metasurfaces that compensate for an object’s scattering pattern from particular viewing angles – have been built for visible light. The Harry Potter version where someone walks into a phone booth and disappears is not on any reasonable trajectory. The actual engineering payoff is in radar cross-section reduction for vehicles, in stealth coatings, in antenna isolation, and possibly in seismic metamaterials that deflect surface waves around critical infrastructure. MIT Lincoln Laboratory has an active research program on this last application; controlled experiments on geophone arrays suggest the physics works, but no city has been cloaked from earthquakes.
Band Gaps for Light

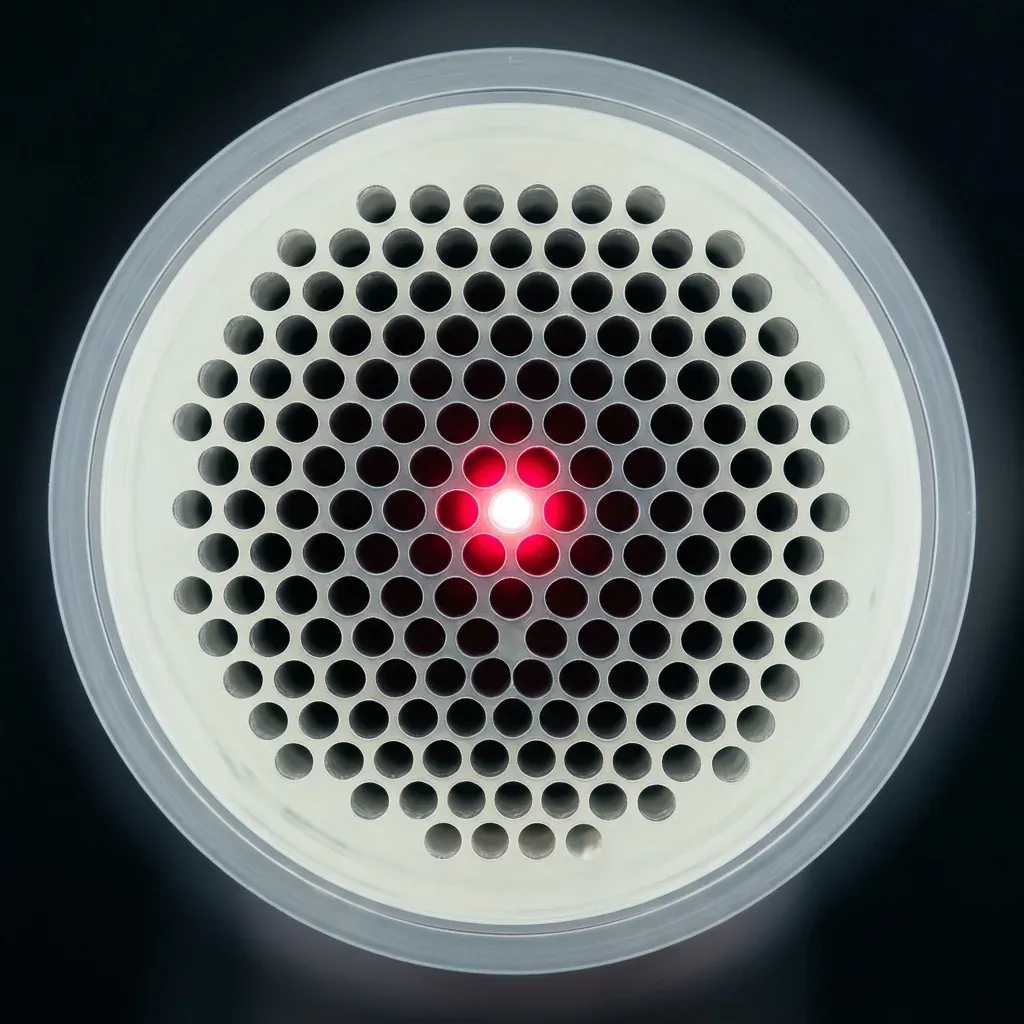

Semiconductors work because the periodic potential of the crystal lattice opens a band gap in the electron energy spectrum – a range of energies where no electron states exist. A photonic crystal is the same trick applied to light. Take a transparent dielectric like silicon and pattern it with a periodic array of air holes spaced about half the wavelength of the light you want to control. The periodic refractive index opens a photonic band gap: a range of frequencies that simply cannot propagate inside the crystal. The math is identical to Bloch’s theorem for electrons and the band-structure diagrams look nearly the same.
Practical results have followed. Perfect mirrors made entirely of patterned dielectric stacks, with no metal layer, reflect light without any of the absorption losses metal mirrors carry. These are the workhorses of vertical-cavity surface-emitting lasers and high-quality optical resonators. Photonic-crystal fiber, invented by Philip Russell in the 1990s, replaces the solid glass core of an ordinary fiber with an air channel surrounded by a periodic hole pattern. Light is confined to the air by the surrounding band gap. The result is a fiber whose nonlinear properties can be engineered almost arbitrarily, used today for fiber lasers, supercontinuum generation, and optical frequency combs. Slow-light demonstrations using band-edge dispersion have pushed pulse propagation speeds to below one percent of the speed of light, useful for optical buffering and delay lines.
Surface Waves and Superlenses
At optical frequencies, metals like gold and silver have a negative real part of their permittivity. The conduction electrons oscillate out of phase with the driving field, and the material behaves as a natural negative-permittivity medium. At the interface between such a metal and an ordinary dielectric, a special wave can propagate: a surface plasmon polariton. It is a light wave bound to the interface, co-moving with a density wave of electrons in the metal. It carries the energy of light but is squeezed into a region tens of nanometers thick, far below what diffraction would allow for the equivalent free-space photon.
John Pendry took this idea further in 2000. He showed mathematically that a slab of material with refractive index exactly minus one would not only refocus all the propagating components of an image but would also amplify the evanescent components – the near-field decaying waves that ordinarily carry sub-wavelength detail but die out before reaching a conventional lens. In principle such a slab would form a perfect lens with infinite resolution. In practice, losses kill the perfect version and what you get is called a superlens: a few times better than the diffraction limit, sometimes much better in special geometries. Hyperbolic metamaterials – alternating metal and dielectric stacks where the permittivity has opposite signs along different axes – convert evanescent waves into propagating ones and have enabled far-field imaging at deep sub-wavelength scales. Recent work has fused them with photonic crystals into hybrid “hypercrystals” with tunable band gaps and improved performance in nanolithography and surface-enhanced Raman spectroscopy.
The catch with anything plasmonic is loss. Gold and silver are excellent conductors at DC and excellent radiators in the visible, but in between they dissipate energy as heat. Decades of work on lower-loss plasmonic materials – titanium nitride, doped semiconductors, transparent conducting oxides – have improved the situation but not solved it. Loss is the persistent enemy of nearly every metamaterial approach, and most progress over the past five years has come from finding ways to design around loss rather than eliminate it.
Sound and Solids Played the Same Game
The Helmholtz equation for sound looks almost identical to the wave equation for light, with density playing the role of permittivity and bulk modulus playing the role of permeability. Once that algebraic parallel is in front of you, the temptation to engineer negative-density and negative-modulus materials becomes irresistible. Acoustic metamaterials built from membrane-mass resonators and Helmholtz cavities have been demonstrated since around 2008. They block specific frequency bands while staying thin and light, promising in applications where conventional mass-law insulation would require panels a meter thick. Soundproofing of HVAC ducts, machinery enclosures, and concert hall walls is a slowly growing commercial market.
Mechanical metamaterials do for solids what acoustic ones do for sound. The most striking example is the auxetic material – a structure with a negative Poisson’s ratio. A normal rubber band thins as you stretch it; an auxetic gets fatter. The geometric trick is internal hinging and re-entrant cells that unfold under tension. Auxetics absorb impact energy unusually well because they pull material toward the impact site rather than away from it. Recent publications report nearly 140% improvements in specific energy absorption for gradient auxetic lattices, with concrete applications in helmets, body armor, prosthetic linings, and tactile sensor skin for robots. The annual count of auxetic-related papers grew from 215 in 2015 to over 1,100 in 2025.
When the Metamaterial Itself Changes
Static metamaterials respond to a wave the way an ordinary lens does – passively, and only at the frequency they were designed for. Programmable metamaterials have varactor or PIN-diode tuned meta-atoms whose response can be re-aimed in software. A reconfigurable intelligent surface, or RIS, is a flat panel of such meta-atoms acting as a programmable radio-frequency mirror. Tilt the panel’s phase pattern and the reflected beam steers without any moving parts.
By 2025 RIS panels were moving from lab demos to operator field trials. Pilot deployments at tunnel mouths and at indoor coverage gaps in 5G networks have measured signal strength gains of about 3.4 dB. The 3GPP standards body formally opened sixth-generation cellular standardization in June 2025, and RIS is one of its headline physical-layer technologies. Commercial 6G deployment is targeted around 2030. Tie Jun Cui’s group at Southeast University in Nanjing has pioneered “digital coding metasurfaces” where each meta-atom is FPGA-controlled and the entire surface becomes a rewritable radio-frequency hologram.

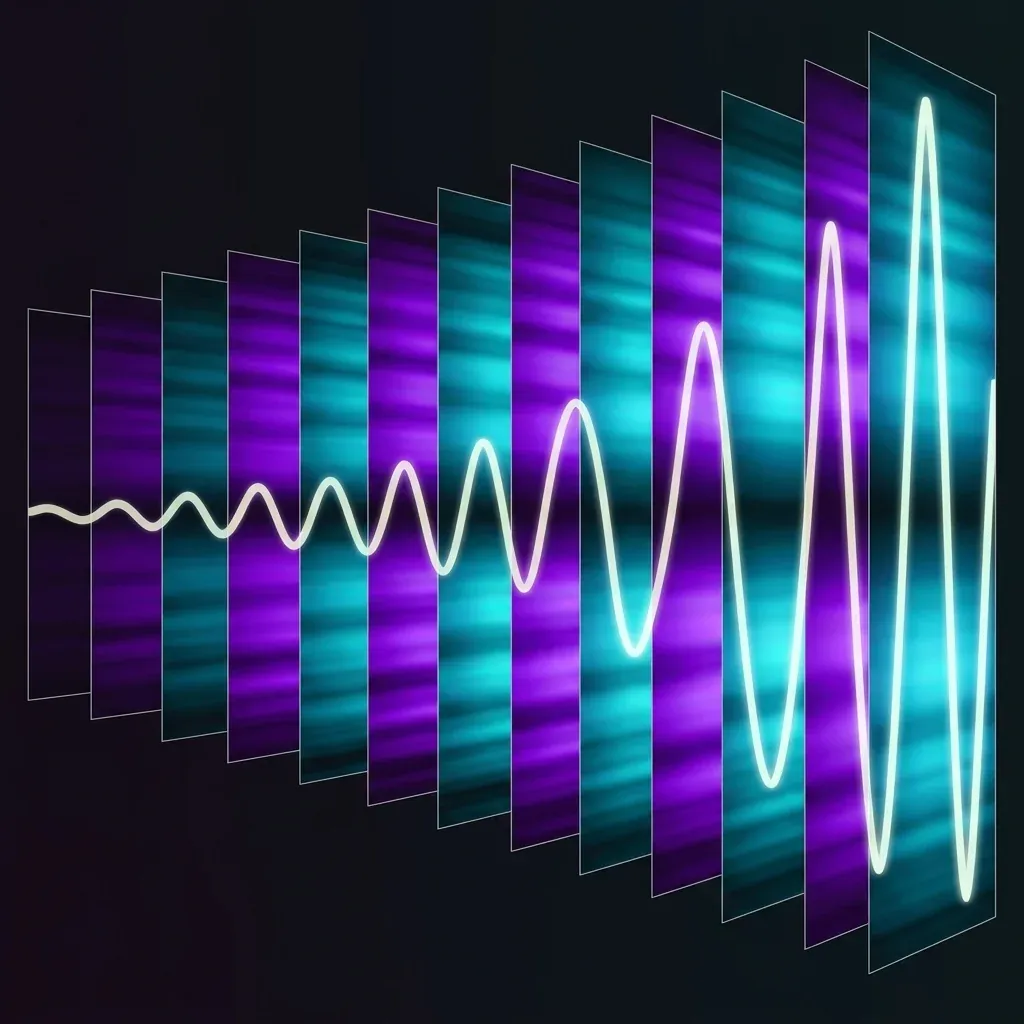

The most recent twist is to modulate the metamaterial not in space but in time. A photonic time crystal has its refractive index switching between two values at intervals comparable to the optical period. The result is a band gap not in frequency, as in a photonic crystal, but in momentum. Waves whose momentum falls inside that gap cannot propagate stably; instead they are exponentially amplified by drawing energy from the modulation itself. Two-dimensional photonic time crystals were demonstrated at microwave frequencies by groups at Karlsruhe and Aalto around 2024–2025, and pushing the same effect up to optical or terahertz frequencies is an active goal rather than a settled result. The amplification is not free – the energy is being pumped in by whatever drives the modulation – but it sidesteps several limitations of static designs. Time-varying and space-time-modulated metamaterials are the most active subfield right now.
What Already Ships

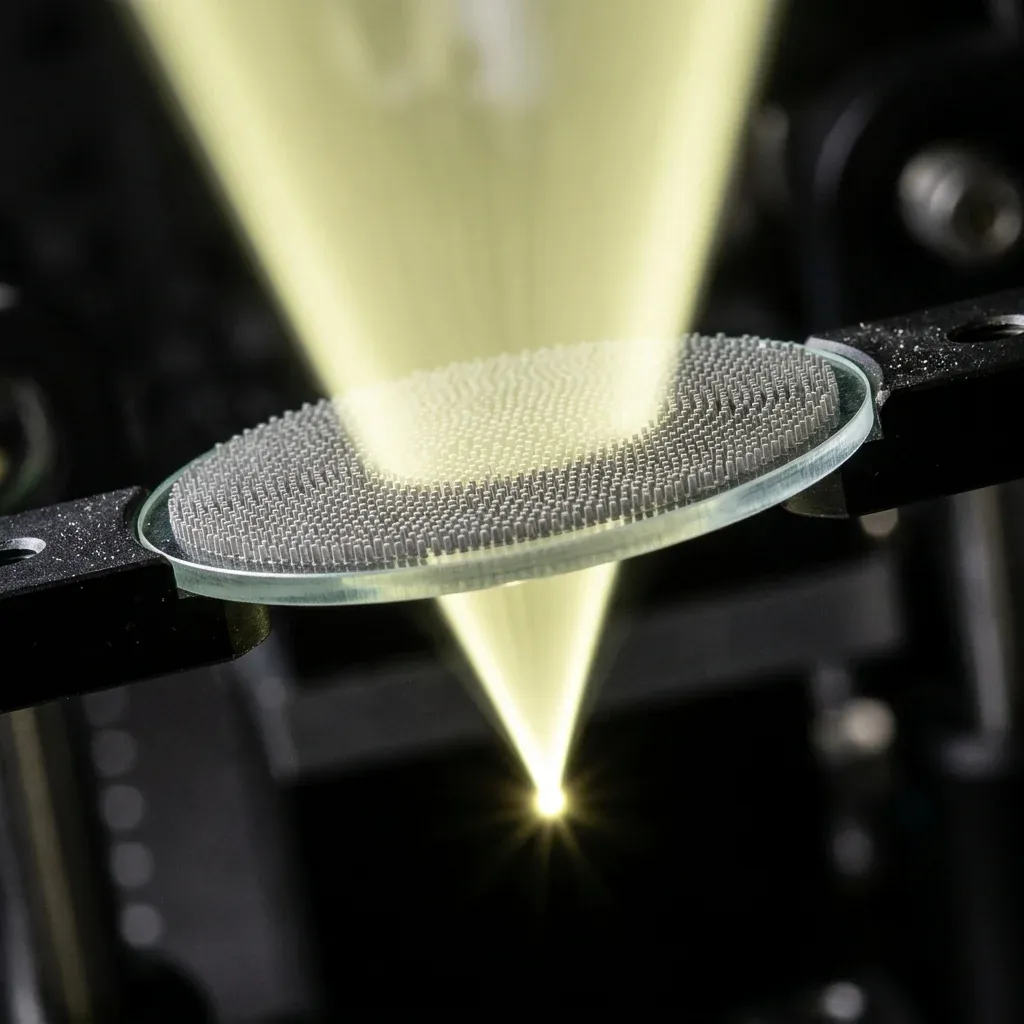

For a field that began with circuit-board curiosities in the early 2000s, the commercial footprint is no longer trivial. The clearest success is the metalens: a flat plate of glass densely populated with silicon or titanium-dioxide nanopillars 300 to 800 nanometers tall, each individually shaped to delay a portion of the incoming wavefront. Hundreds of thousands of pillars across a few-millimeter aperture together do the job of a curved glass lens, without the thickness or weight. Metalenz, a Harvard spinout, and STMicroelectronics together had shipped more than 140 million metasurface optics by 2025, embedded as the laser autofocus and depth-sensing elements in flagship smartphones including the Samsung Galaxy S23 Ultra, the Google Pixel 8 Pro, and the Apple iPad Pro M4. A polarization-based face-authentication system called Polar ID entered smartphone trials in May 2025 with commercial rollout targeted in 2026.

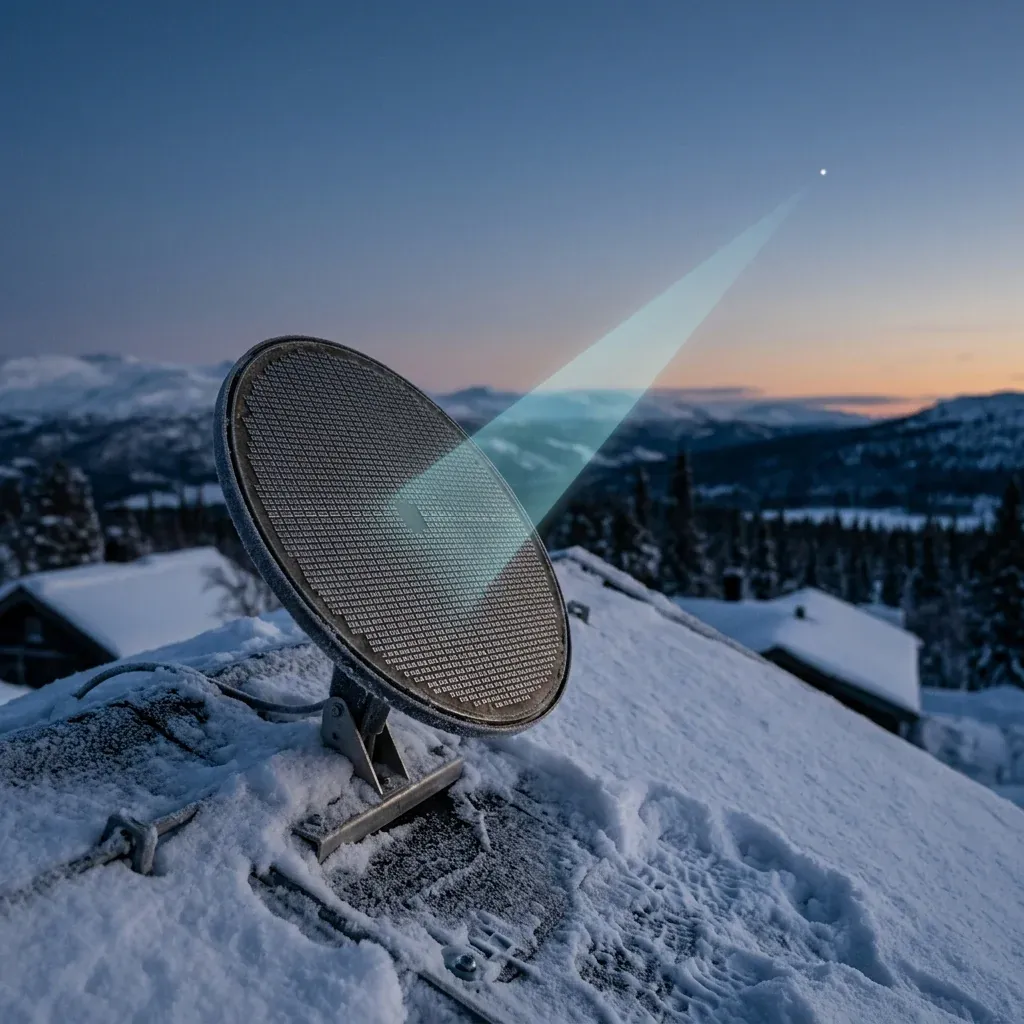

The second visible success is the phased-array satellite terminal. The SpaceX Starlink user antenna is a flat disc roughly forty centimeters across containing about 1,280 individual metasurface elements. The phase delays applied to each element steer the transmitted radio beam toward a specific low-orbit satellite, tracking it across the sky in microseconds and switching to the next satellite as the current one drops below the horizon. There are no moving parts. Several million terminals have been sold by 2026. Beam steering at car-mounted 77 GHz automotive radar, holographic radar for security screening, and dielectric metamaterial pads that boost local signal-to-noise ratio inside MRI scanners are all in production or pilot deployment.
Honest accounting: metalenses, phased-array terminals, photonic-crystal fiber, and reconfigurable surfaces are deployed in volume. Acoustic absorbers, hyperbolic-lens microscopy, and broadband terahertz cloaks are in pre-commercial field trials. Photonic time crystals, room-temperature topological lasers, and visible-light invisibility cloaks are exciting laboratory demonstrations that are not yet products. The persistent technical enemy is the combination of loss, narrow bandwidth, and direction-specific response. Almost every published “perfect” metamaterial result comes with fine print: works in one band, one polarization, one viewing angle. The story of the past five years has been gradually retreating from chasing the perfect static design and moving toward active, time-modulated, and machine-learning-designed metamaterials that work around those limitations instead of fighting them.
Topology Hands Light a Highway
The mathematics of topological invariants turned out to apply to photonic systems with the same force it applies to electronic ones. The interface between two photonic crystals with different topological indices supports an edge mode that propagates along the interface without backscattering. Defects, sharp bends, and fabrication roughness do not disrupt it – the light goes around the obstacle the way a current in a quantum-Hall electron system goes around an impurity. Topological photonic chips reported in 2025 demonstrated on-chip nonreciprocal devices in magneto-optical indium antimonide, valley-Hall edge waveguides on silicon, and topological lasers with mode stability guaranteed by topology rather than by gain engineering.
The result feels like cheating. Light in a topological photonic crystal can be told to make a ninety-degree turn around a fabrication defect, and it does, with essentially no loss. There is no analogous way to do this with standard waveguides. The mechanism is the same protection that gives a quantum Hall plateau in electronics. Topology has become a design parameter for photonics, in much the same sense that symmetry became a design parameter for crystals a hundred years earlier.
The Big Picture
Crystals taught physics that arrangement matters as much as composition. Metamaterials made arrangement an engineering parameter all the way down to the wavelength. The natural toolbox – the periodic table, the bond lengths and angles you inherit from chemistry – is finite, and almost everything possible inside it has been discovered. The toolbox of engineered geometry is unbounded. As the cost of nanofabrication keeps falling and machine-learning design tools keep improving, the question stops being whether a desired electromagnetic, acoustic, or mechanical response exists in some material and starts being whether you can pattern silicon, glass, or steel finely enough to realize it.
The honest summary of the field after two decades: a few clean theoretical insights produced a flood of clever lab demonstrations, a smaller number of which have grown into deployed engineering. The flat lenses in your phone exist because Veselago’s 1968 thought experiment about negative index pulled an entire scientific community into a new way of thinking about how materials and waves meet. None of the dramatic promises – invisibility, perfect lenses, optical computers built from photonic crystals – has quite landed in its strongest form. Several have landed in modest forms that already work. The next decade will tell whether time-varying and topological designs deliver another generation of results, or whether the persistent enemy of loss puts a ceiling on how much further geometry can push physics.
